3D Printable STL File

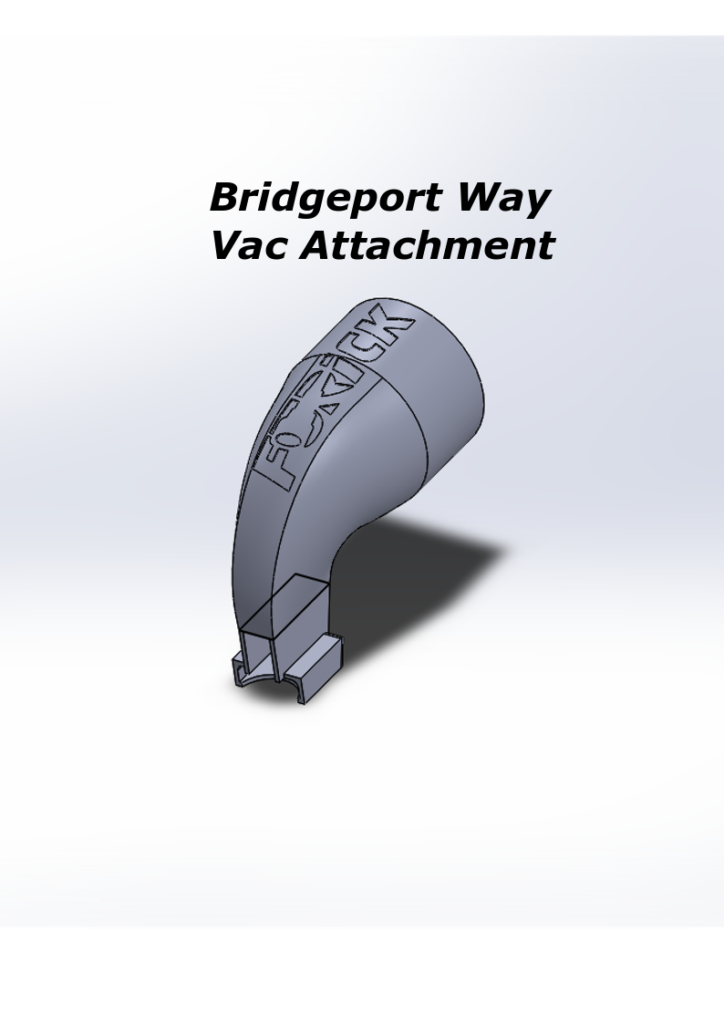

Bridgeport Vac Attachment

Side Vac Big Nozzle Edition

Format
.STL (Zip)
Category
Workshop Tool
Difficulty
Moderate

Description

Improve your shop’s cleanliness with this heavy-duty Bridgeport Vac Attachment. Specifically designed for Bridgeport mills (or similar clones), the Side Vac Big Nozzle version provides maximum airflow for clearing large chips and dust directly from the source. This design mounts securely to the side of the head, ensuring the nozzle stays positioned exactly where you need it during manual or CNC operations.

Print Settings

• Material: PETG,ASA or ABS (Recommended for shop environments)
• Infill: 15-20% (Grid or Gyroid)
• Wall Count: 3-4 layers for structural rigidity
• Supports: Minimal (Depending on orientation)
• Layer Height: 0.2mm – 0.28mm

Key Features

• High-volume air path for large chips.
• Vibration-resistant mounting design.
• Compatible with standard 2.5″ shop vac hoses.
• Heat-stable design for proximity to machining.

Ready to Print?

Download the package containing the STL file and assembly instructions.

Download STL Files (.zip)

File Name: Bridgeport-vac-attachment-Side-vac-big-nozzle.zip

Uploaded for the 3D Printing Community by Furick Cup.
